Yesterday was a long 12 hour day of upgrading my clutch. Replaced OEM parts with FRPP Roller Pilot Bearing, FRPP Nodular Flywheel, ARP Flywheel Bolts, Spec Stage 2 Clutch with Pressure Plate, ARP Pressure Plate Bolts, OEM Throw-out Bearing, New Pivot Stud, FRPP Clutch Fork, PA Performance Starter, Steeda Quadrant, Steeda Adjustable Clutch Cable.
Started by putting the rears on ramps, and lifting the front up on jack stands.
Then disconnected the rear exhaust, removed the cat's. After that the Driveshaft came out.
While getting ready to remove the Bell Housing bolts, noticed that someone in the past used the transmission as a lift point.
Had my youngest daughter remove the shifter boot, shifter dust cover, and pull the Steeda Tri-Ax out.
8 Bell housing bolts, 2 easy bolts and 1 pain in the rear bolt on the starter and the transmission came out fairly easy.
Time to remove the flywheel.

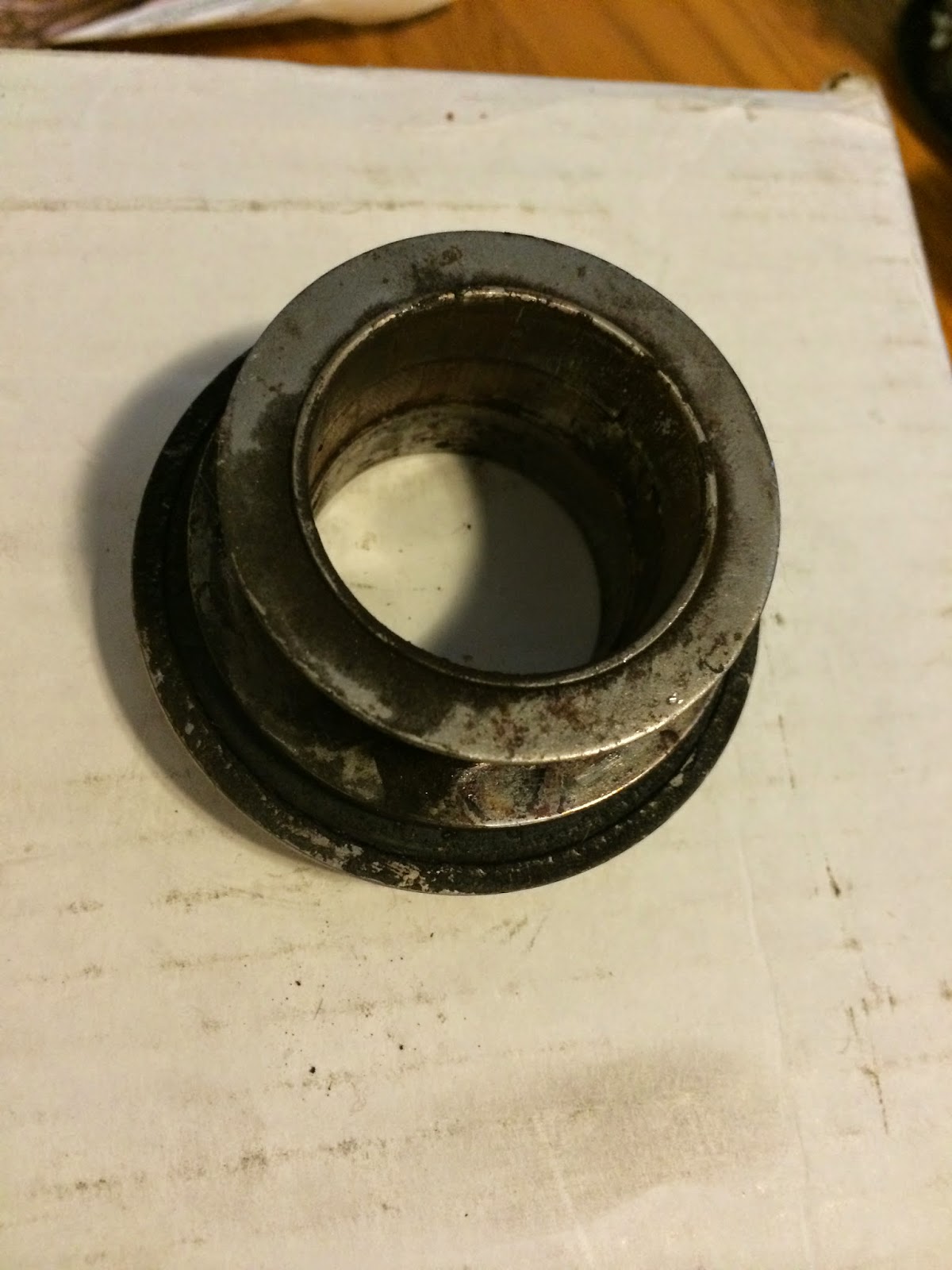

There was still plenty of material left on the clutch, but that wasn't why I was upgrading. The Throw Out bearing was toast.

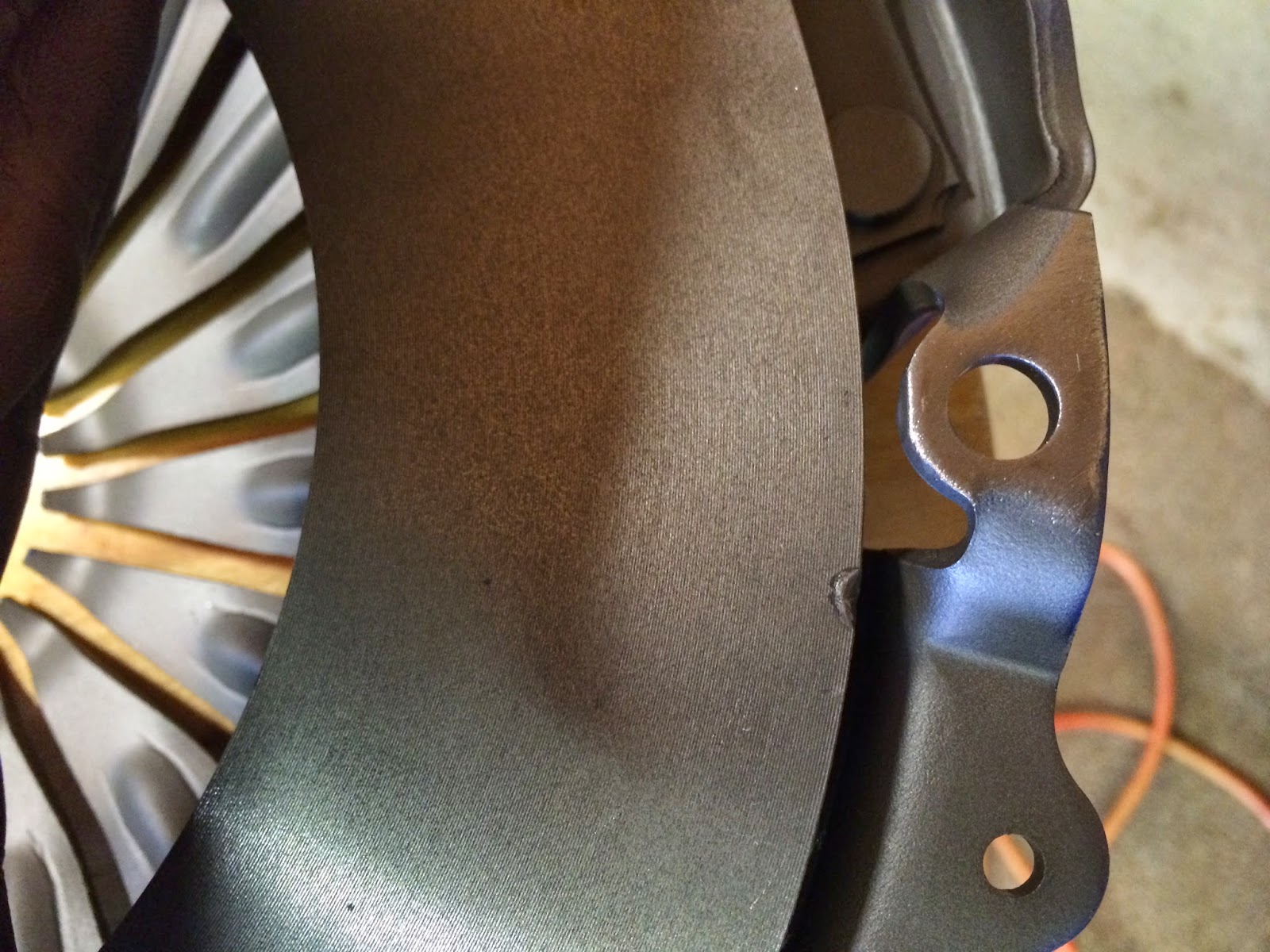

The new Spec Pressure plate had a manufacturing defect in it. My friend Neil was able to carefully grind it down.
The old Pivot stud was worn out.
Installed the new Pilot Bearing, Flywheel, Clutch disk, Pressure Plate with ARP Bolts. Afterwards we repaired the bell housing. Then installed the new Clutch fork, Pivot Stud, and Throw Out Bearing. The transmission went back into place fairly easy with the help of this homemade transmission adapter plate for my 2.5 ton floor jack.
Now that the transmission was back in, time for the starter re-install. 2 easy bolts done, and then a friend painstakingly put the pain in the rear bolt back in. Note his hand in the picture below. The bolt is on top behind the starter with tight access.
Last thing to do was install the new Steeda Quadrant, Firewall Adjuster and Adjustable cable.
I want to thank Liz & Ernie for the use of their shop. I also want to thank James, Nelson, Neil, Liz, Ernie, Alex, and Chloe for helping out. Also want to thank my dad for making the transmission plate. I gave him the idea and numbers and he put it together. I made lifting the transmission in and out a breeze. Thank you Dad
